Flood Lighting

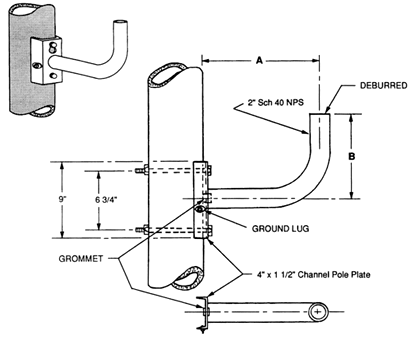

Bracket Dimensions

Catalog N0. A B Wt. (Lbs.)
BHN14G 14" 10" 3 1/2
BHN18G 18" 10" 4
BHN24G 24" 10" 4 1/2

Bracket Dimensions

Catalog N0. A B Wt. (Lbs.)
EQBHN14G 14" 10" 4
EQBHN18G 18" 10" 4 1/2
EQBHN24G 24" 10" 5

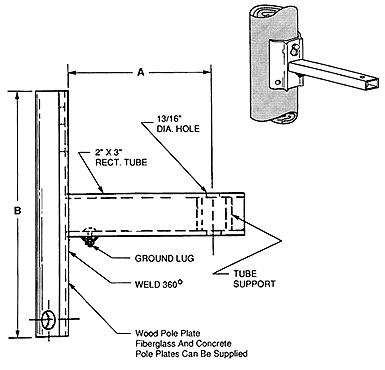

Bracket Dimensions

Catalog N0. A B Wt. (Lbs.)
FL200189G 18" 9" 4
FL200309G 30" 9" 6
FL200489G 48" 9" 8

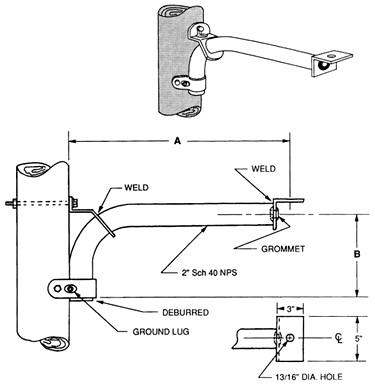

Bracket Dimensions

Catalog N0. A B Wt. (Lbs.)
2-12-1G 12" 11 1/2" 3 1/2
2-18-1G 18" 11 1/2" 4 1/2
2-24-1G 24" 11 1/2" 5

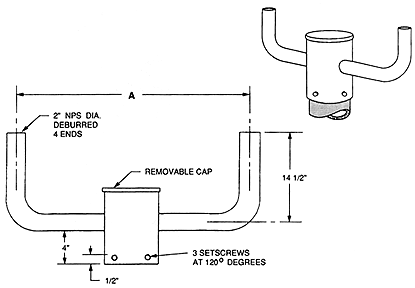

Bracket Dimensions

Catalog N0. A B Wt. (Lbs.)
2BHN18 - 3" Tenon 18" 3" 6
2BHN18 - 4 1/2" Tenon 18" 4 1/2" 6
2BHN33 - 3" Tenon 33" 3" 9
2BHN33 - 4 1/2" Tenon 33" 3" 9
