Truss Type Brackets

Truss Type Aluminum Brackets include PUP (Pipe under Pipe) and TUP (Taper under Pipe) styles.

PUP (Pipe Under Pipe)


Catalog N0. Span Rise (Upper No. "P") Pole Space"N"
20011452PUP(G) 10 FT. 39 IN. 18 IN.
20013862PUP(G) 12 FT. 46 IN. 20 IN.
20016264PUP(G) 14 FT. 46 IN. 22 IN.
20017465PUP(G) 15 FT. 46 IN. 22 IN.
20018666PUP(G) 16 FT. 46 IN. 22 IN.
20021068PUP(G) 18 FT. 46 IN. 22 IN.
20023470PUP(G) 20 FT. 46 IN. 22 IN.

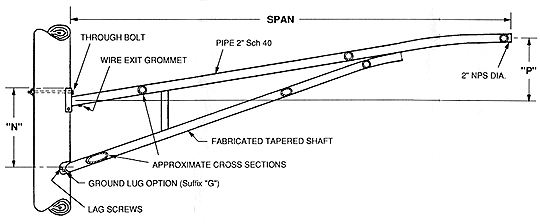

TUP (Taper Under Pipe)


Catalog N0. Span Rise (Upper No. "P") Pole Space"N"
20011452TUP(G) 10 FT. 39 IN. 18 IN.
20013862TUP(G) 12 FT. 46 IN. 20 IN.
20016264TUP(G) 14 FT. 46 IN. 22 IN.
20017465TUP(G) 15 FT. 46 IN. 22 IN.
20018666TUP(G) 16 FT. 46 IN. 22 IN.
20021068TUP(G) 18 FT. 46 IN. 22 IN.
20023470TUP(G) 20 FT. 46 IN. 22 IN.
